AC Motor Start Capacitor

Keltron Aluminium Electrolytic Motor Start capacitors are manufactured using High purity Etched and Formed Aluminium Foil with specially formulated Electrolytic to provide low PF characteristics and High-end performance Motor Start Capacitors. Capacitors are manufactured under climatically controlled condition using Sophisticated manufacturing and testing machine.
SERIES PICTURE DESCRIPTION OPERATING TEMPERATURE RANGE CAPACITANCE (μ F) RANGE WORKING VOLTAGE DUTY CYCLE SIZE RANGE DIA X LENGTH MM BODY COLOR CATALOGUE
MS Aluminium Electrolytic A .C Motor Start Capacitor Single Can Construction - Standard duty cycle -30°C to 70°C 20 µ F to 1020 µ F 110 ~ 330 VAC 1.7% 30 X 55 to 45 x 100 Green
MD Aluminium Electrolytic A .C Motor Capacitor Double Can Construction - Standard duty cycle -30°C to 70°C 20 µ F to 1020 µ F 110 ~ 330 VAC 1.7% 30 X 75 to 45 x 125 Metallic Gray
MF Aluminium Electrolytic A .C Motor Start Capacitor Single Can Construction - Light duty cycle -30°C to 70°C 20 µ F to 1020 µ F 110 ~ 330 VAC 0.84% 30 X 55 to 45 x 100 Green

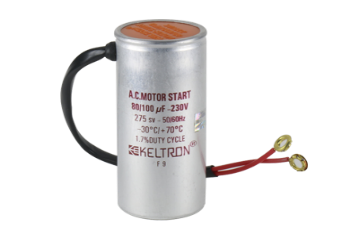

ME Aluminium Electrolytic A .C Motor Capacitor Double Can Construction - Light duty cycle -30°C to 70°C 20 µ F to 1020 µ F 110 ~ 330 VAC (Single Phase) 0.84% 30 X 75 to 45 x 125 Metallic Gray

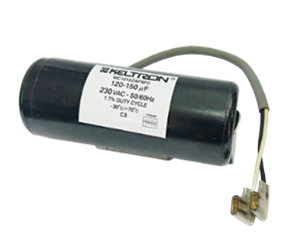

MC, MU Aluminium Electrolytic Motor Start Capacitor Phenolic casing Construction -30°C to 70°C 20 µ F to 552 µ F 110 ~ 330 VAC (Single Phase) 0.84 to 1.7% 36 X 81 to 46 x 122 Black

Throughout our extensive history, we have continually refined and perfected our products to meet the highest standards of quality and innovation.
